MATRIX High Precision Power Meter MPM-1010B, AC Wattage Meter Parameter Test with RS-232, Digital Power Meter with Alarm Function, Upper and Lower Limit Alarms Set (15hz-650hz,0.3w~3000w)

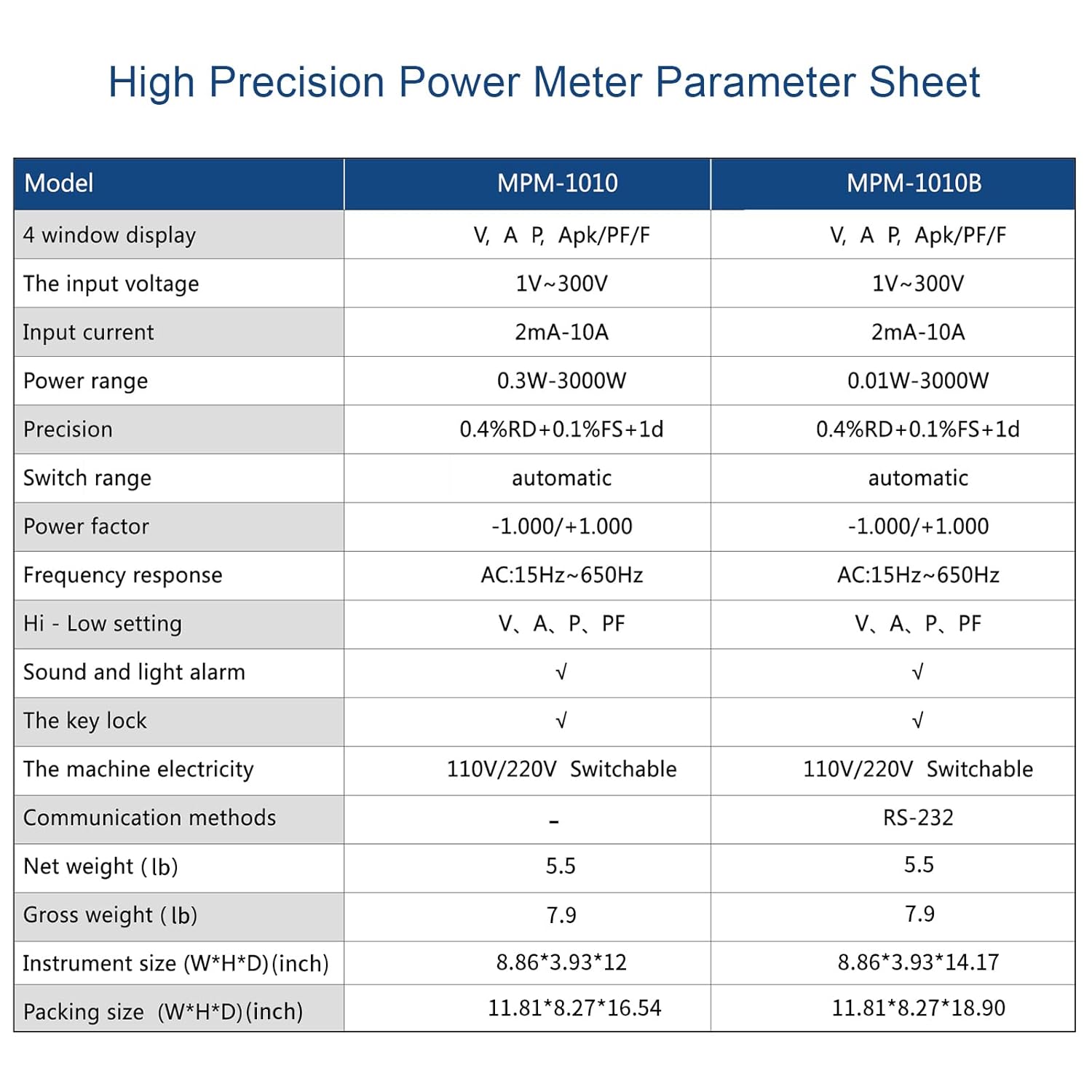

MPM-1010B high-precision power meter applies direct plug mode instead of traditional terminal posts according to customers suggestion, to improve safety and convenience. The voltage and current sampling section uses precision resistance direct sampling instead of traditional transformer sampling, which ensures the original data is undistorted and improves the accuracy of the instrument. And this machine is especially adapted to some half wave and other various waveform measurement of DC component, testing full wave resistance, the distorted wave, half wave, symmetrical and unsymmetrical square wave, triangle wave, sawtooth wave and other special waveform under AC mode. It is a high cost-effective prod­uct with novel appearance and scientific design. It is widely used in mobile phone charger, adapter, switch power, household appliance, transformer and other industries. Features4 window display:V, A P, Apk/PF/FThe input voltage:1V-300V Input current :0.2mA-10A Power range :0.01W-3000W Precision:0.4%RD+0.1%FS+ldSwitch range :automatic Power factor :-1.000/+1.000Frequency response :AC:15Hz-650HzHi - Low setting :A, PSound and light alarm :√The key lock :√The machine electricity:110V/220V Switchable Communication methods :RS-232(0ptional)Size (W*H*D) :215*110*305 Weight :2.2Kg

• HIGH PRECISION MATRIX MPM-1010B DIGITAL POWER METER：MPM series intelligent electrical parameter measuring instrument is a set of voltage test, current test, power test. It is a multi-function measuring instrument integrating power factor, with a high-speed processor inside.
• PERFORMANCE CHARACTERISTICS：six test parameters V, A, P, PF/ApK. The wider frequency response is 15hz-650hz, exceeding all products of the same level. It can test the no-load public consumption, the minimum current is 0.2mA, and the minimum power is 0.001W.Power factor, current, power upper and lower limit settings, sound and light alarm.
• SIMPLE OPERATION, STANDARD INTERFACE： directly save the trouble of wiring, improve safety and convenience. Suitable for batch testing on production lines. Precision resistance sampling technology is more applicable to a wide range of products. Standard RS-232 interface, suitable for system integration.
• WIDE RANGE OF USES: laboratory, production line testing, lighting, home appliance testing, quality inspection departments, etc.
• THREE-YEAR WARRANTY AND QUALITY INSPECTION: We will inspect all DC power supplies and accessories before shipping to ensure that every customer receives a quality product. We offer a three-year warranty policy and technical support.
