CRL Medium Duty 90º Hold-Open Overhead Concealed Door Closer With "S" Side-Load Hardware Package
4.4 (103 items)
Limited Time SaleUS$86.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210240988 | Release Date | 2026/04/02 | List Price | US$57.60 | Model Number | 210240988 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

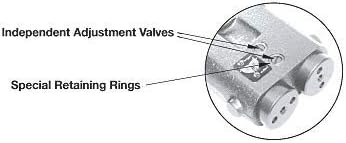

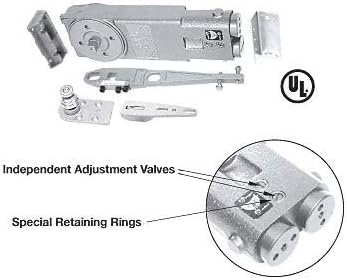

"S" Center-Hung, Side-Load Hardware Package for Doors with 1/2" Deep Top Rails Suitable for Doors From 30 to 42 Inch (762 to 1,069 mm) Wide U.L. Listed With a Five Year Limited Warranty Door Closers Cross Reference Chart The CRL8160S Overhead Door Closer Package consists of a Medium Duty Door Closer suitable for doors from 30 to 42 inch (762 to 1,069 millimeters) wide. The Closer is packaged complete with CRL8010FS Mounting Clips, CRL8010S "S" Side Load Arm, CRL8010DP "DP" Adjustable Dual-Purpose Bottom Pivot Set and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No-Hold Open models are available. Closers fit into standard 1-3/4 x 4 inch (44.5 x 101.6 millimeter) (or larger) header extrusions. Closer Body Length: 11-5/8 in (295 mm) Closer Body Width: 3-11/16 in (94 mm) Minimum Order: 1 Each Important Note: This Door Closer is not to be used for doors weighing in excess of 200 Lbs.
- For Doors with 1/2" (13 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed
| UPC | 060829935204 |
|---|---|
| Color | Silver |
| Brand Name | CRL |
| Item Weight | 10 Pounds |
| Manufacturer | C.R. Laurence |
| Material Type | Aluminum |
| Exterior Finish | Aluminum |
| Installation Type | Screw-In |
| Specification Met | UL |
| Recommended Uses For Product | Interior doors in commercial and residential settings with 1/2-inch top rail depth, when a medium-duty door closer is required for doors weighing up to 200 lbs and measuring between 30 to 42 inches wide. Suitable for doors requiring 90º or 105º hold-open functionality and fitting into standard 1-3/4 x 4-inch (or larger) header extrusions. |
