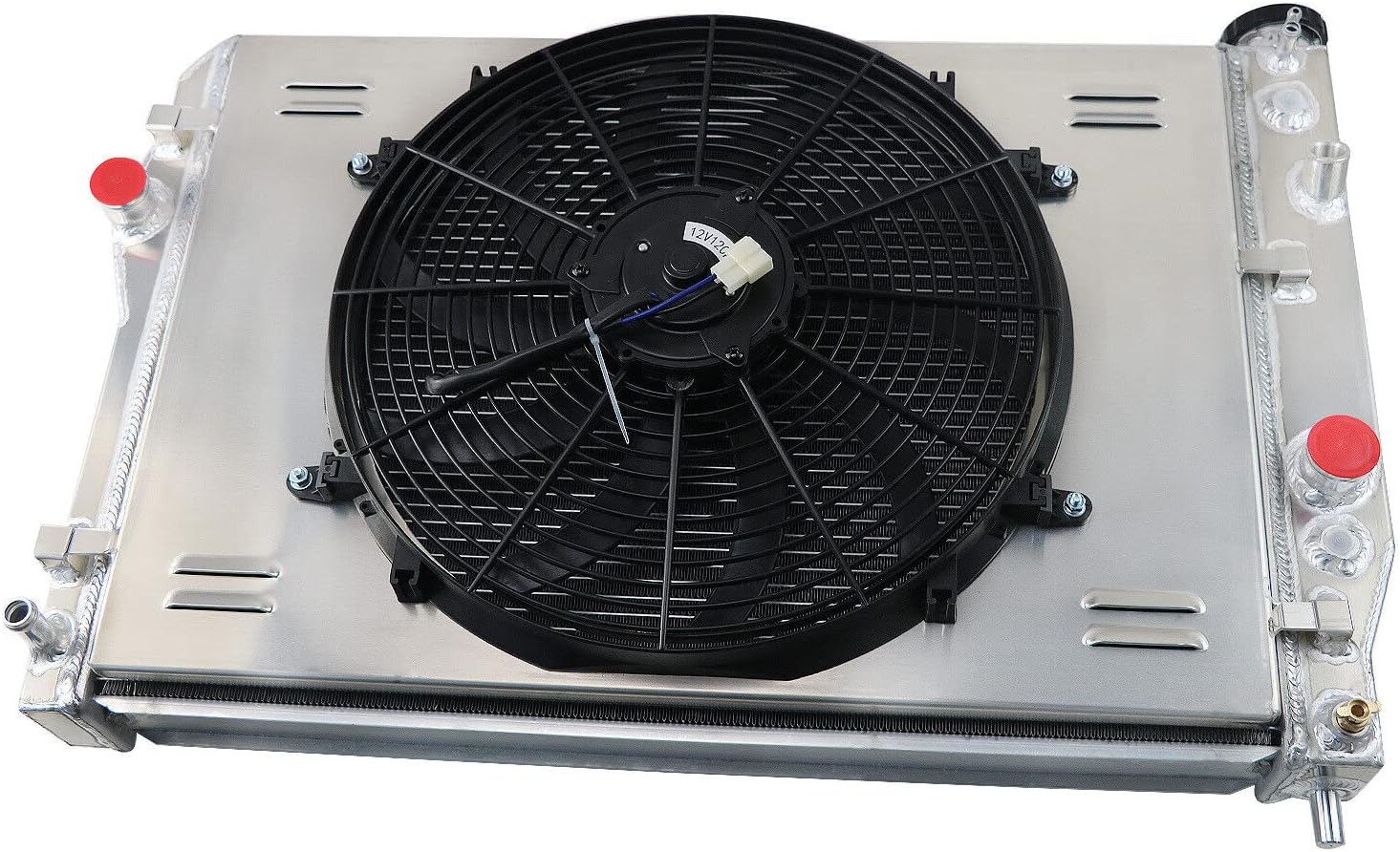

ALLOYWORKS 4 Row All Aluminum Radiator+Shroud Fan+Relay For 1993-2002 Chevy Camaro Z28, Pontiac Firebird V8

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 16" FAN AND THERMOSTAT KITS! Radiator Size: Row: 4 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: Cross Flow Core Dimension (H x W): 17 3/4 x 25 Overall Dimension (H x W): 20 1/2 x 29 5/8 Hose Locations: IN: Passenger / OUT: Driver Hose Fittings: IN: 1 1/4 - OUT: 1 3/8 Trans Cooler: YESTrans Cooler: ￠26×292×M12×1.25(Z) Mounting Type: Pin Mount Transmission: Automatic and Manual. Vehicle Fitment : For Pontiac Firebird/Trans AM/Camaro 1993-2002 For Chevy Camaro Firebird 1993-2002 Interchange Part Number: CC2365 CU2365,MC2365 PR2365A,CU2471,2939 2365 Part Numbers: 52471357,REA412365A,1486,8012365,2784,RA1114,438081 Other Part Number: 1605-370166,1605-370138,2365,4-0693,B2471 FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.

• ◆ Radiator Replacement For 1993-2002 Chevy Camaro Z28, Pontiac Firebird V8
• ◆ Improves cooling by 35% to 45% temperature
• ◆ Made of high quality full T-6061 aluminum construction
• ◆ Stronger and higher capacity for coolant than stock units
• ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
